martes, 25 de octubre de 2011

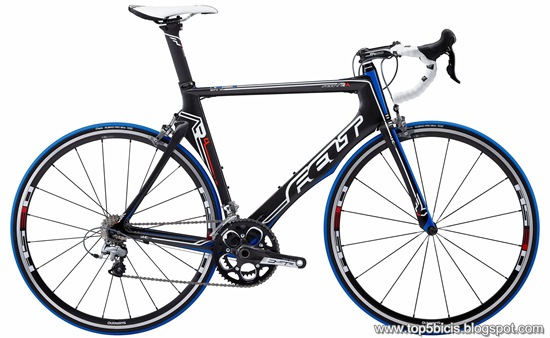

Felt AR4

AR4 felt

Más de lo mismo. Este modelo monta un cuadro muy similar si no igual a los modelos de mayor calidad de la marca Felt. La única variante apreciable que se le ve, es el grupo que monta y las ruedas, que como se observan, son de menor calidad que la versión AR3.



Más abajo os paso las principales características de este modelo…



  • Finish:

    1) Gloss carbon

  • Sizes:

    700c x 51cm, 54cm, 56cm, 58cm, 61cm

  • Weight:

    16.93lbs | 7.69kg *based on 56cm frame size

  • Frame:

    Felt Aero Road UHC Advanced MMC carbon fiber w/ 3KP weave, InsideOut internal molding process, machined threaded aluminum BB shell, internal mechanical cable routing, carbon fiber dropouts & 6061 forged aluminum replaceable derailleur hanger

  • Shock:

    n/a

  • Fork:

    Felt Aero Road UHC Advanced monocoque fork, 100% carbon fiber 1.125"" steerer tube, crown, blades, & dropouts

  • Headset:

    FSA 1.125"" integrated, w/ aluminum 25mm conical spacer, 1 X 10mm aluminum headset spacer, 2 x 5mm aluminum headset spacer, Felt aluminum top cap & 7075 anodized aluminum bolt

  • Stem:

    Felt SL 6061 aluminum 3D forged +/-7° rise, Ø31.8mm bar clamp, custom Cr-Mo bolts, 131g; 51cm=90mm, 54cm=100mm, 56cm=100mm, 58cm=110mm, 61cm=120mm

  • Handlebar:

    Felt VS Aero 2014 triple butted aluminum w/ aerodynamic wing top section, w/ Variable Shape ergonomic drop, Ø31.8mm, 51cm=400mm, 54cm-56cm=420mm, 58cm-61cm=440mm

  • Grips:

    Felt gel tape w/ Felt logos

  • Bar Ends:

    Felt bubble-tech ""F Wing"" icon end plugs

  • Shifters:

    Shimano Ultegra STI

  • Front Derailleur:

    Shimano Ultegra braze-on

  • Rear Derailleur:

    Shimano Ultegra SS short cage

  • Crankset:

    FSA Team Issue Compact, 52/36T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm

  • Chainwheel

    52T/36T

  • Chainguide:

    n/a

  • Bottom Bracket:

    FSA MegaExo

  • Pedals:

    n/a

  • Chain:

    Shimano 10 speed

  • Freewheel:

    Shimano 11-25T

  • Brake Levers:

    Shimano Ultegra STI

  • Brakes:

    Shimano Ultegra Super SLR dual pivot w/ cartridge brake pads

  • Cables:

    Shimano SLR brake & SP41 derailleur

  • Saddle:

    Felt SL road saddle w/ carbon fiber injection molded base, polyurethane foam, embossed cover & hollow Cr-Mo rails

  • Seat Post:

    Felt Aero UHC Advanced carbon fiber standard offset bladed monocoque design, length = 300mm

  • Seat Post Clamp:

    AR Aero 3D forged aluminum, 2 x 5mm x 0.8mm Cr-Mo bolts, 23g

  • Rims:

    Shimano WH-RS30 30mm deep aluminum rim, 16H front, 20H rear

  • Front Hub:

    Shimano RS30 forged aluminum angular contact bearing 16H w/ Shimano quick release

  • Rear Hub:

    Shimano RS30 forged aluminum angular contact bearing 20H w/ 10 speed HG freehub body w/ Shimano quick release

  • Spokes:

    Shimano RS30 16H x 278mm front & 20 x 294mm rear bladed aero stainless steel w/ red aluminum nipples

  • Tires:

    Vittoria Rubino Pro Slick, 700c x 23c

  • Fenders:

    n/a

  • Kickstand:

    n/a

  • Accessories:

    n/a



Detalle a destacar; este modelo pesa unos gramos menos que el modelo AR3…. Más concretamente, 7.69kg.



Fuente de datos y más información.: http://www.feltbicycles.com/
